Each kit contains a Guest Internet controller to manage the Internet service for many people by printing access vouchers that limits time and data speed to ensure that the Starlink terms of use are not exceeded. The kit contains one of several wireless configurations to distribute wireless Internet to community members.

Click the information button to see the configuration and use for each kit. The product page includes a datasheet describing the kit contents. Each kit also includes an illustrated guide that explains step by step the process of installing and configuring the installation so that community members get wireless Internet. The guide is available in English and Spanish.

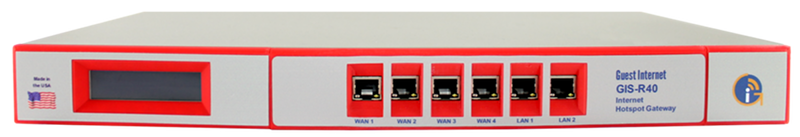

High performance Hotspot Gateway for large scale applications, built with the latest generation Intel quad core processor.

Core functionality: plug and play wizard, cloud management, programmable login page, authentication, disclaimer editor, access code generation, content filtering, bandwidth control, advanced firewall, usage and billing reports, PayPal^® and credit card billing, URL filter, MAC filter, configuration backup/restore and access code API.

SPECS
WAN1-WAN4 (Internet) RJ-45 Gb/s
LAN1-LAN2 (network) RJ-45 Gb/s

High performance Hotspot Gateway for large scale applications, built with the latest generation Intel dual core processor.

Core functionality: plug and play wizard, cloud management, programmable login page, authentication, disclaimer editor, access code generation, content filtering, bandwidth control, advanced firewall, usage and billing reports, PayPal^® and credit card billing, URL filter, MAC filter, configuration backup/restore and access code API.

SPECS
WAN1-WAN2 (Internet) RJ-45 Gb/s
LAN1-LAN4 (network) RJ-45 Gb/s

High performance dual WAN Hotspot Gateway with four independent isolated LAN ports, load balance and fail-over

Core functionality: plug and play wizard, cloud management, programmable login page, authentication, disclaimer editor, access code generation, content filtering, bandwidth control, advanced firewall, usage and billing reports, PayPal^® and credit card billing, URL filter, MAC filter, configuration backup/restore and access code API.

SPECS
WAN1-WAN2 (Internet) RJ-45 Gb/s
LAN1-LAN4 (network) RJ-45 Gb/s

High performance dual WAN Hotspot Gateway with three independent isolated LAN ports, load balance and fail-over

Core functionality: plug and play wizard, cloud management, programmable login page, authentication, disclaimer editor, access code generation, content filtering, bandwidth control, advanced firewall, usage and billing reports, PayPal^® and credit card billing, URL filter, MAC filter, configuration backup/restore and access code API.

SPECS
WAN1-WAN2 (Internet) RJ-45 Gb/s
LAN1-LAN3 (network) RJ-45 Gb/s

High performance Hotspot Gateway with four independent isolated LAN ports.

Core functionality: plug and play wizard, cloud management, programmable login page, authentication, disclaimer editor, access code generation, content filtering, bandwidth control, advanced firewall, usage and billing reports, PayPal^® and credit card billing, URL filter, MAC filter, configuration backup/restore and access code API.

SPECS
WAN (Internet) RJ-45 Gb/s
LAN1-LAN4 (network) RJ-45 Gb/s

High performance Hotspot Gateway with four independent isolated LAN ports.

Core functionality: plug and play wizard, cloud management, programmable login page, authentication, disclaimer editor, access code generation, content filtering, bandwidth control, advanced firewall, usage and billing reports, ^™ Login, URL filter, MAC filter, configuration backup/restore and access code API.

SPECS
WAN (Internet) RJ-45 Gb/s
LAN1-LAN4 (network) RJ-45 Gb/s

Outdoor Hotspot Gateway with built-in long range Wi-Fi.

Core functionality: plug and play wizard, cloud management, programmable login page, authentication, disclaimer editor, access code generation, content filtering, bandwidth control, advanced firewall, usage and billing reports, PayPal^® and credit card billing, URL filter, MAC filter, configuration backup/restore and access code API.

SPECS
WAN RJ-45 10/100
Wireless port: 802.11/n, 300Mb/s
2.4GHz to 2.484GHz
RF Power output: +27dBm (800mW)
6dBi omnidirectional antenna
Polarization: Vertical

Indoor Hotspot Gateway with built-in long range Wi-Fi.

Core functionality: plug and play wizard, cloud management, programmable login page, authentication, disclaimer editor, access code generation, content filtering, bandwidth control, advanced firewall, usage and billing reports, PayPal^® and credit card billing, URL filter, MAC filter, configuration backup/restore and access code API.

SPECS
WAN RJ-45 10/100
LAN RJ-45 10/100
Wireless port: 802.11/n, 300Mb/s
2.4GHz to 2.484GHz
RF Power output: +23dBm (200mW)
Omnidirectional antenna, ceiling mount
Polarization: Horizontal+Vertical

Outdoor Hotspot Gateway with built-in long range Wi-Fi.

Core functionality: plug and play wizard, cloud management, programmable login page, authentication, disclaimer editor, access code generation, content filtering, bandwidth control, advanced firewall, usage and billing reports, PayPal^® and credit card billing, URL filter, MAC filter, configuration backup/restore and access code API.

SPECS
WAN RJ-45 10/100
LAN RJ-45 10/100
Wireless port: 802.11/n, 300Mb/s
2.4GHz to 2.484GHz
RF Power output: +23dBm (200mW)
8dBi Panel Antenna, H:60o V:33o
Polarization: Horizontal+Vertical

Hotspot Gateway with built-in long range Wi-Fi.

Core functionality: plug and play wizard, cloud management, programmable login page, authentication, disclaimer editor, access code generation, content filtering, bandwidth control, advanced firewall, usage and billing reports, PayPal^® and credit card billing, URL filter, MAC filter, configuration backup/restore and access code API.

SPECS
WAN RJ-45 10/100
LAN-LAN4 RJ-45 10/100
Wireless port: 802.11/n, 100Mb/s

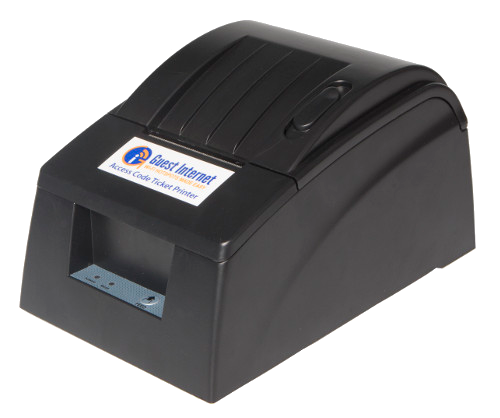

The GIS-TP1 adds access code ticket printing to any GIS hotspot gateway product. The ticket printer has an Ethernet interface and connects to the gateway's LAN network. A tablet computer can be used to control the printer. Buttons are displayed on the tablet screen for up to 10 different access code durations. Touching any button causes the ticket to be generated and printed.
